Subproject A05
Measurement of thermochemical parameters in gas phase layers and liquid phase films using laser absorption spectroscopy


  Name Contact
Dr. rer. nat. Steven Wagner
+49 6151 16-28925
L6|01 109
M.Sc. Anna von der Heyden
+49 6151 16-28906
L6|01 111
M.Sc. Leon Schuhmann
+49 6151 16-28906
L6|01 111

At a glance

In the video, Anna Schmidt presents project A05: Drop/spray wall film interaction.


Physical and chemical processes near the cylinder-wall or in the exhaust treatment system play an important role in the continuing optimization of combustion processes, the reduction of fuel consumption and the primary pollutant formation in the context of internal combustion engines. The interaction between the walls with the injected fuel, the exhaust treatment additive and/or the combustion gases is strongly coupled to the currently not well understood mass and heat transport processes. Therefore, the devolvement of new models needs more detailed experimental investigations on generic systems. Within the CRC/Transregio, we focus on the coupling between the wall and fuel film in the ICE cylinder and on exchange processes between additive films and exhaust gases in near-wall exhaust gas conversion processes.


The overall focus of this subproject is the characterization of thermochemical states in multiphase flow systems to investigate dynamics in exhaust gas systems as well as pollutant formation diving flame-wall interactions under generic and practical conditions. For the wide range of operating conditions and the harsh environments, diagnostic methods have to be developed which allow simultaneous measurements of the gas phase (SCR and flames) and the liquid phase (SCR, oil film). The characterization of the boundary layer, both in a combustion environment and in exhaust gas systems, should be enabled by means of the newly developed measurement methods. In addition, for the used spectroscopic methods, fundamental questions regarding the interpretation of the parameter extraction in measurements with complex gas matrices and with rapid changes in the process conditions must be clarified and new models for the description of the measured spectra have to be developed.

The work in this subproject is characterized by a quantitative determination of the thermochemical parameters (gas concentrations, temperatures, pressure, film thickness, film composition) with a high temporal resolution (kHz).

Previous Findings

A 2D-TDLAS spectrometer was successfully developed and validated for spatially resolved measurements of gas concentrations above Urea-Water-Solution (UWS) films. This allowed spatially and temporally resolved tomographic measurements of gaseous water during UWS injection in an SCR hot gas test rig (see figure 1).

The 0D film thickness sensor from FP1 was redesigned for more robustness and measurements were performed on a hot gas test rig. The film development by injection of HWL can now be observed over several minutes and was subsequently used to validate numerical models from C05 (see figure 2). A classification of the individual processes in the spray wall interaction in dependence of the wall temperature in cooperation with A02 was also performed during certain measurement campaign.

Using advanced spectroscopic algorithms, it was additionally possible to select wavelengths for simultaneous detection of film thicknesses, film temperatures and film concentrations of urea water solution. Thus, the existing film thickness sensor could be extended. In addition, further wavelengths were selected to enable the transfer of this method to measure oil film parameter.

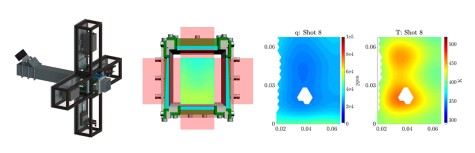

Figure 1: Optical measurement chamber (left), cross section of tomographic measurement plane, reconstruction domain (framed) is given by geometric constraints; Reconstructions of mole fraction and temperature (right)

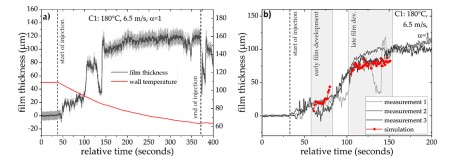

Figure 2: Film thickness (black) of UWS at 180 °C, 6.5 m/s, α=1 and wall temperature (red) measured at the same location 0.3 mm below the surface. The dashed vertical lines marked the beginning and end of AdBlue injection, the uncertainty is indicated in gray; (b) Comparison of UWS film thickness evolution during early and late injection stage for the configuration C1


For the investigation of the above questions, laser-optical measurement methods, based on absorption spectroscopy, will be used and further enhanced. Absolute mole fractions and temperatures will be measured using direct tunable diode laser absorption spectroscopy (dTDLAS). This method was extended to film thickness (FMLAS) measurements as well as the investigation of further parameters of the liquid phases.

In contrast to other measurement methods used in this Collaborative Research Centre, laser absorption spectroscopy is able to provide absolute species concentrations without additional in-situ calibration. Especially in the spectral regions of the near-IR and the short mid-IR (NIR, MWIR) it is planned to adapt TDLAS to the conditions during in-cylinder combustion and exhaust gas aftertreatment. Here we aim to preserve the unique combination of selectivity, sensitivity and robustness of this method.

Current Work

Current goals include the improvement of the sensor for simultaneous detection of film thicknesses, film temperatures and film concentrations of urea water solution with respect to its robustness and applicability in the SCR context. This enables the in-situ investigations of the influence of the liquid phase on thermolysis and hydrolysis in an optically accessible generic hot gas test rig. Additionally the sensor will be further extended and optimized to give 2D images of the film thickness, temperature and urea distribution.

In cooperation with the other experimental subprojects in this Collaborative Research Centre, the quantitative determination of relevant process parameters (gas concentrations, temperatures, pressure, film thicknesses, film composition) supports the model development for near-wall multiphase flows in Combustion engines, exhaust gas purification systems and the construction of an experimental reference database for validation purposes.


For an optimized design of the pressurized side-wall quenching burner, the intense cooperation with subproject A04 was pursued. Experiments in various gas flow channel (A01 Stephan, C04 Deutschmann), were carried out to observe the effect of turbulent gas phase on UWS evaporation and crystallization as well as the investigations of multiphase reaction processes. In A02 the characterization of the spray-wall interaction in the SCR environment was achieved. Furthermore, oil films were measured in the pressure chamber of project C02 . In addition, the quantitative results of the various experiments will be exchanged and discussed with their respective experimental subprojects and the modeling subprojects involved C05 (Sadiki / Hasse) and B05 (Deutschmann).

Selected Publications

  • van der Kley, S., Emmert, J., Schmidt, A., Dreizler, A., Wagner, S.: Tomographic spectrometer for the temporally-resolved 2D reconstruction of gas phase parameters within a generic SCR test rig. Proc. Combust. Inst. 12 (1), 63, 10.1016/j.proci.2020.09.009, 2020
  • van der Kley, S., Goet, G., Schmidt, A., Einspieler, V., Wagner, S.: Multiparameter Determination of Thin Liquid Urea-Water Films. Appl. Sci. 11 (19), 8925, 10.3390/app11198925, 2021.
  • Biondo, L., Gerken, H., Illmann, L., Steinhaus, T., Beidl, C., Dreizler, A., Wagner, S.: Advantages of Simultaneous In Situ Multispecies Detection for Portable Emission Measurement Applications. SAE J. STEEP 2 (2), 161-171, 10.4271/13-02-02-0010, 2021.
  • Schmidt, A., Bonarens, M., Roisman, I. V., Nishad, K., Sadiki, A., Dreizler, A., Hussong, J., Wagner, S.: Experimental Investigation of AdBlue Film Formation in a Generic SCR Test Bench and Numerical Analysis Using LES. Appl. Sci. 11 (15), 6907, 10.3390/app11156907, 2021.
  • Schmidt, A., van der Kley, S., Wagner, S.: Optically accessible generic exhaust gas test bench for the investigation of fundamental SCR-relevant processes. Appl. Opt. 59 (23), 6953–6958, 10.1364/AO.397574, 2020
  • S. van der Kley, V. Einspieler, G. Goet, M. Maliha, A. Schmidt, H. Kubach and S. Wagner: Oil Film Thickness and Temperature Measurement Method for in-situ Diagnostics. not peer reviewed (ECM)
  • Emmert, J., Blume, N.G., Dreizler, A., Wagner, S.: Data analysis and uncertainty estimation in supercontinuum laser absorption spectroscopy. Sci Rep, 10.1038/s41598-018-28705-2, 2018.
  • Bürkle, S., Biondo, L., Ding, C.-P., Honza, R., Ebert, V., Böhm, B., Wagner, S.: In-cylinder temperature measurements in a motored IC engine using TDLAS. Flow Turb. Combust., 10.1007/s10494-017-9886-y, 2018.
  • Schmidt, A., Kühnreich, B., Kittel, H., Tropea, C., Roisman, I.V., Dreizler, A., Wagner, S.: Laser based measurement of water film thickness for the application in exhaust after-treatment processes, Int. J. Heat Fluid Flow, 10.1016/j.ijheatfluidflow.2018.04.013, 2018.
  • Diemel, O., Honza, R., Ding, C., Böhm, B., Wagner, S., In situ sensor for cycle-resolved measurement of temperature and mole fractions in IC engine exhaust gases, 37th Symposium on Combustion, 10.1016/j.proci.2018.06.182, 2018.
  • Bürkle, S., Walter, N., and Wagner S., Laser-based measurements of pressure broadening and pressure shifts coefficients of combustion relevant absorption lines in the near infrared region, Appl. Phys. B, 10.1007/s00340-018-6993-y, 2018.
